This chapter explains how Hazelcast is supported on OSGI (Open Service Gateway Initiatives) environments.
Hazelcast bundles provide OSGI services so that Hazelcast users can manage (create, access, shutdown) Hazelcast instances through these services on OSGI environments. When you enable the property hazelcast.osgi.start
(default is disabled), when an Hazelcast OSGI service is activated, a default Hazelcast instance is created automatically.
Created Hazelcast instances can be served as an OSGI service that the other Hazelcast bundles can access. Registering created Hazelcast instances behavior is enabled by default; you can disable it using the property hazelcast.osgi.register.disabled
.

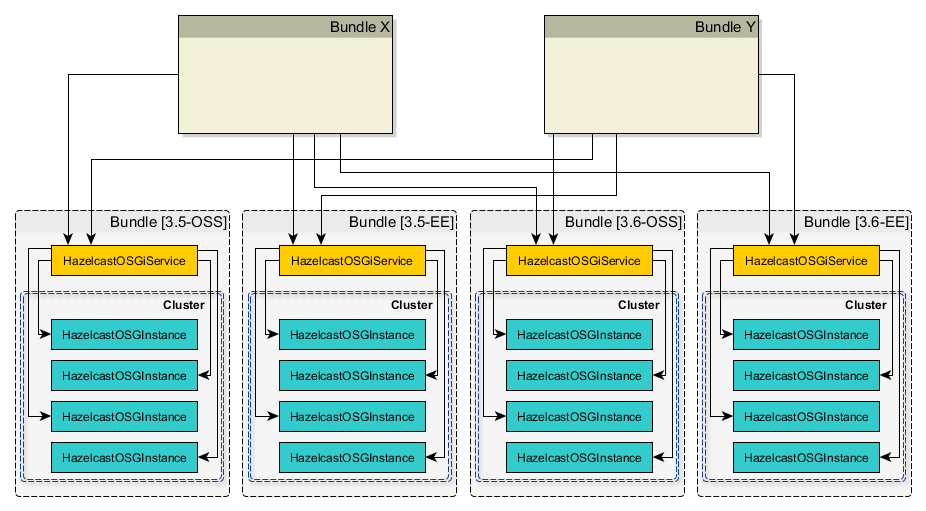

Each Hazelcast bundle provides a different OSGI service. Their instances can be grouped (clustered) together to prevent possible compatibility issues between different Hazelcast versions/bundles. This grouping behavior is enabled by default and you disable it using the property hazelcast.osgi.grouping.disabled
.
Hazelcast OSGI service's lifecycle (and the owned/created instances's lifecycles) is the same with the owner Hazelcast bundles. When the bundle is stopped (deactivated), the owned service and Hazelcast instances are also deactivated/shutdown and deregistered automatically. When the bundle is re-activated, its service is registered again.
The Hazelcast Enterprise JAR package is also an OSGI bundle like the Hazelcast Open Source JAR package.
HazelcastOSGiService
: Contract point for Hazelcast services on top of OSGI. Registered to org.osgi.framework.BundleContext
as the OSGI service so the other bundles can access and use Hazelcast on the OSGI environment through this service.
HazelcastOSGiInstance
: Contract point for HazelcastInstance
implementations based on OSGI service. HazelcastOSGiService
provides proxy Hazelcast instances typed HazelcastOSGiInstance
which is a subtype of HazelcastInstance
and these instances delegate all calls to the underlying HazelcastInstance
.
HazelcastOSGiService
uses three configurations:
hazelcast.osgi.start
: If this property is enabled (it is disabled by default), when an HazelcastOSGiService
is activated, a default Hazelcast instance is created automatically.
hazelcast.osgi.register.disabled
: If this property is disabled (it is disabled by default), when a Hazelcast instance is created by HazelcastOSGiService
, the created HazelcastOSGiInstance
is registered automatically as OSGI service with type of HazelcastOSGiInstance
and it is deregistered automatically when the created HazelcastOSGiInstance
is shutdown.
hazelcast.osgi.grouping.disabled
: If this property is disabled (it is disabled by default), every created HazelcastOSGiInstance
is grouped as their owner HazelcastOSGiService
and do not join each other unless no group name is specified in the GroupConfig
of Config
.HazelcastOSGiService
is specific to each Hazelcast bundle. This means that every Hazelcast bundle has its own HazelcastOSGiService
instance.
Every Hazelcast bundle registers its HazelcastOSGiService
instances via Hazelcast Bundle Activator (com.hazelcast.osgi.impl.Activator
) while they are being started, and it deregisters its HazelcastOSGiService
instances while they are being stopped.
Each HazelcastOSGiService
instance has a different service ID as the combination of Hazelcast version and artifact type (OSS
or EE
). Examples are 3.6#OSS
, 3.6#EE
, 3.7#OSS
, 3.7#EE
, etc.
HazelcastOSGiService
instance lifecycle is the same with the owner Hazelcast bundle. This means that when the owner bundle is deactivated, the owned HazelcastOSGiService
instance is deactivated, and all active Hazelcast instances that are created and served by that HazelcastOSGiService
instance are also shutdown and deregistered. When the Hazelcast bundle is re-activated, its HazelcastOSGiService
instance is registered again as the OSGI service.
You can access all HazelcastOSGiService
instances through org.osgi.framework.BundleContext
for each Hazelcast bundle as follows:
for (ServiceReference serviceRef : context.getServiceReferences(HazelcastOSGiService.class.getName(), null)) {
HazelcastOSGiService service = (HazelcastOSGiService) context.getService(serviceRef);
String serviceId = service.getId();
...
}
You can use HazelcastOSGiService
instance to create and shutdown Hazelcast instances on OSGI environments. The created Hazelcast instances are HazelcastOSGiInstance
typed (which is sub-type of HazelcastInstance
) and are just proxies to the underlying Hazelcast instance. There are several methods in HazelcastOSGiService
to use Hazelcast instances on OSGI environments as shown below.
// Get the default Hazelcast instance owned by `hazelcastOsgiService`
// Returns null if `HAZELCAST_OSGI_START` is not enabled
HazelcastOSGiInstance defaultInstance = hazelcastOsgiService.getDefaultHazelcastInstance();
// Creates a new Hazelcast instance with default configurations as owned by `hazelcastOsgiService`
HazelcastOSGiInstance newInstance1 = hazelcastOsgiService.newHazelcastInstance();
// Creates a new Hazelcast instance with specified configuration as owned by `hazelcastOsgiService`
Config config = new Config();
config.setInstanceName("OSGI-Instance");
...
HazelcastOSGiInstance newInstance2 = hazelcastOsgiService.newHazelcastInstance(config);
// Gets the Hazelcast instance with the name `OSGI-Instance`, which is `newInstance2` created above
HazelcastOSGiInstance instance = hazelcastOsgiService.getHazelcastInstanceByName("OSGI-Instance");
// Shuts down the Hazelcast instance with name `OSGI-Instance`, which is `newInstance2`
hazelcastOsgiService.shutdownHazelcastInstance(instance);
// Print all active Hazelcast instances owned by `hazelcastOsgiService`
for (HazelcastOSGiInstance instance : hazelcastOsgiService.getAllHazelcastInstances()) {
System.out.println(instance);
}
// Shuts down all Hazelcast instances owned by `hazelcastOsgiService`
hazelcastOsgiService.shutdownAll();
